High Speed Overhead Doors
In comparison to standard overhead doors, high-speed overhead doors have increased speed of operation and are ideal for improving efficiency in food processing facilities, cold storage applications, distribution and logistics, as well as pharmaceutical facilities.
About
High-Speed Overhead Doors: Speed. Safety. Self Repairing. Superior Seal.
High-speed doors, also called freezer doors, cooler doors, rubber doors or roll up doors, have been shown to increase facility efficiency. High-speed doors provide greatly improved speed and safety, are self-repairing and provide a superior seal.
Lenworth is proud to be a leader in sales, service, installations and repairs on all makes and models of high-speed overhead doors, rubber doors, industrial freezer doors and more. We operate across Canada with the capabilities to service nationally. Our high-speed door options provide a range of benefits including:
Superior Speed: Reduce unwanted air transfer with the fastest cycle time in the industry.
Superior Seal: Tightest seals in the industry designed for a high degree of hygiene.
Superior Safety: Soft bean bag bottom edge can eliminate injuries or equipment damage.
Self Repairing: Avoid unnecessary maintenance costs or downtime.
Quiet Operation: Performance with minimal noise.
In addition to our selection of high-speed door options our best-in-class preferred service program, platinum product line offering and commitment to quality and service has made us the leader in the Loading Dock and Industrial Overhead Door industry for more than 15 years.
Contact us today!
Fill out the form below or call 1-905-625-6555 to get sales, service or more information on high-speed overhead doors.
Our Products

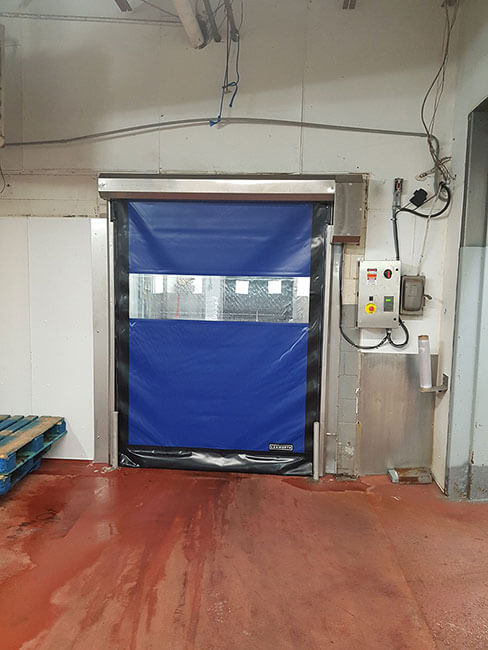

DYNACO Slimline Stainless High Speed Doors (Interior)
The DYNACO SlimLine Stainless door is engineered to provide safe, quiet and efficient area separation where high cycle operation and sanitation are critical.
Full stainless steel construction and a state of the art wash-down drive system provide years of reliable service in demanding hygienic applications. High speed operation, ultra tight seal and soft curtain technology assure outstanding environmental control as well as safety for pedestrians and equipment.
Technical Data
Maximum Height: 12′ H
Maximum Width: 12′ W
Opening Speed: Up to 48″/sec
Closing Speed: Up to 24″/sec
Technology: Gravity
Easy Cleaning / Sanitary Design
USDA/FDA compliant curtain is smooth and free of mechanical components which can trap contamination. #304 stainless steel construction and wash-down drive system makes cleaning and maintaining a sanitary environment simple.
Safety First
With a DYNACO door, your safety is assured. Infrared photo-eyes and a wireless sensing edge reverse the door automatically if an obstruction is detected or contacted. Our soft bottom edge curtain is free of heavy, rigid components thus protecting users and equipment from common hard edge accidents. Our OPTIONAL EGRESS FEATURE provides additional safety for your employees in an emergency.
Energy Savings
Installing a DYNACO door saves energy! Its high speed operation and industry leading seal significantly reduce unwanted air transfer saving you money hour after hour.

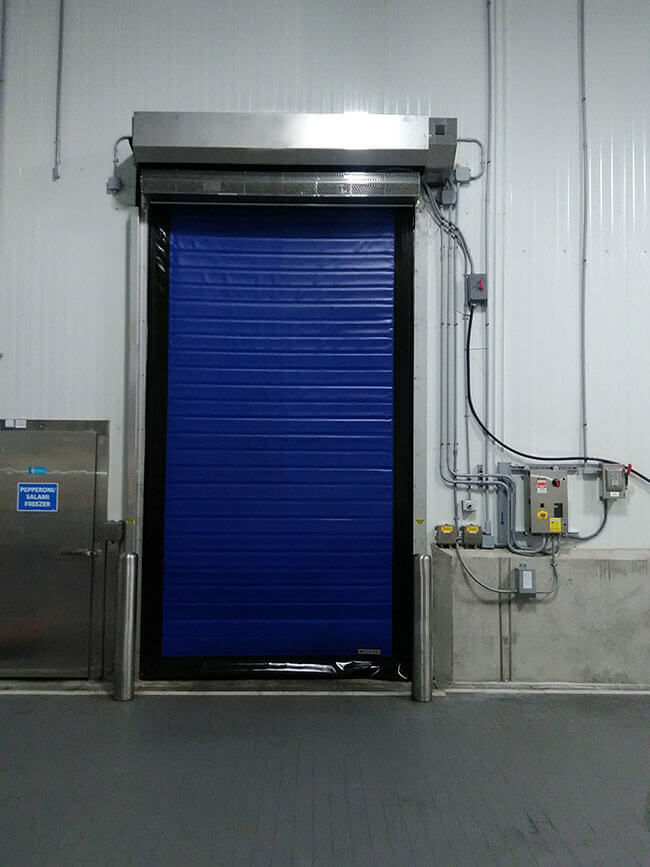

DYNACO Freezer High Speed Door (Interior)
Engineered specifically for freezer applications, the DYNACO M2 Freezer door provides the industry’s fastest return on investment and lowest life cycle cost.
This energy saving door system minimizes convection, conduction and infiltration energy loss. Faster cycle speeds (up and down), an insulated curtain (optional) and tighter seals around the perimeter reduce loss of cold air. All of this is accomplished without compromising speed or safety.
Technical Data
Maximum Height: 15′ H
Maximum Width: 15′ W
Opening Speed: Up to 96″/sec
Closing Speed: Up to 70″/sec
Technology: Push/Pull
Fast Speed
Significantly reduces energy costs due to lost temperature control; dramatically improves productivity and safety.
Insulation
An insulated door curtain consisting of two layers of PVC filled with insulating material can be specified to reduce convection.
Tight Seal
On all four sides of the opening minimizes infiltration, inhibits water, dust, pests and other contaminants.

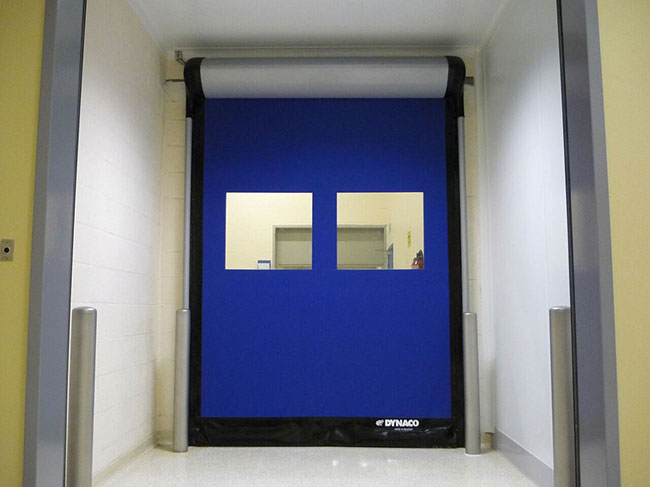

DYNACO D-313 Streamline High Performance Door (Interior)
The Streamline Door provides outstanding environmental control through the use of state of the art technology. A sleek, attractive exterior houses patented components designed for maximum performance with minimal noise and clearance issues.
Designed for applications where cleanliness and/or aesthetics are critical, the Streamline incorporates smooth composite materials virtually free of exposed fasteners. Ultra quiet operation and soft curtain technology assure safety and comfort. Streamline doors are designed for interior only environments to 0.82 lbft2 and have a maximum standard dimension of 14’x14’.
Technical Data
Maximum Height: 14′ H
Maximum Width: 14′ W
Opening Speed: Up to 120″/sec
Closing Speed: Up to 24″/sec
Technology: Gravity
Integrated Motor Design
The patented “In Tube” motor design reduces lateral spacing and allows door speeds up to 120” sec. The drive system utilizes soft start/stop technology, an absolute encoder and dynamic breaking, eliminating maintenance prone limit switches and brakes.
Side Guides And Seals
Side guides are formed from galvanized structural shapes with a curved composite cover. Covers attach to the frames without the use of exposed fasteners. Inner side guides are extruded, self-lubricating UHMW that mold around the bead leaving a maximum air gap of 0.017”. Conventional weather-strip systems that are prone to wear and damage are eliminated.
Safety
DYNACO’s exclusive soft curtain design prevents hard edge accidents. No stiffeners or rigid components to injure workers or damage equipment. A wireless reversing edge and built-in infrared sensors protect against downward accidents.

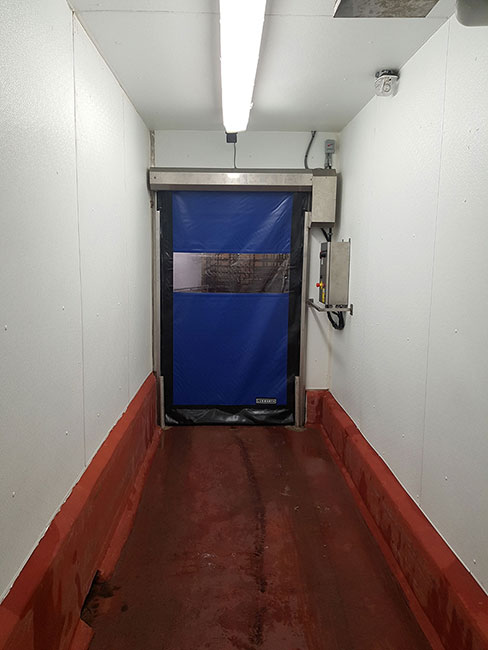

Slimline Techno High Speed Door (Interior)
The Slimline Techno door is designed for interior environments, providing a high-tech, safe, and aesthetically pleasing door for even the most demanding customers. The Slimline Techno combines our proven control and drive system, with our specially modified bead sealing technology, for ultra-smooth, ultra-quiet operation.
Incorporating DYNACO’s exclusive DYNALOGIX II controls, with a variable frequency drive, provides maximum performance, flexibility and self-diagnostic capabilities for technology driven environments. The Slimline Techno will operate with a difference in pressure of up to 0.82 lbs/sq.ft(winds of 10 MPH indicative, not including any multiplication coefficients, and taking into account the configuration of the building).
Technical Data
Maximum Height: 12′ H
Maximum Width: 12′ W
Opening Speed: Up to 48″/sec
Closing Speed: Up to 24″/sec
Technology: Gravity
Safety First
With a DYNACO door, your safety is assured. Infrared photo-eyes and a wireless sensing edge reverse the door automatically if an obstruction is detected or contacted. Our soft bottom edge curtain is free of heavy, rigid components thus protecting users and equipment from common hard edge accidents. Our OPTIONAL EGRESS FEATURE provides additional safety for your employees in an emergency.
Energy Savings
Installing a DYNACO door saves energy! Its high speed operation and industry leading seal significantly reduce unwanted air transfer saving you money hour after hour.
Superior Seal
The patented side guides and tight seal keep out unwanted contamination and eliminate wear prone weather-strip systems.

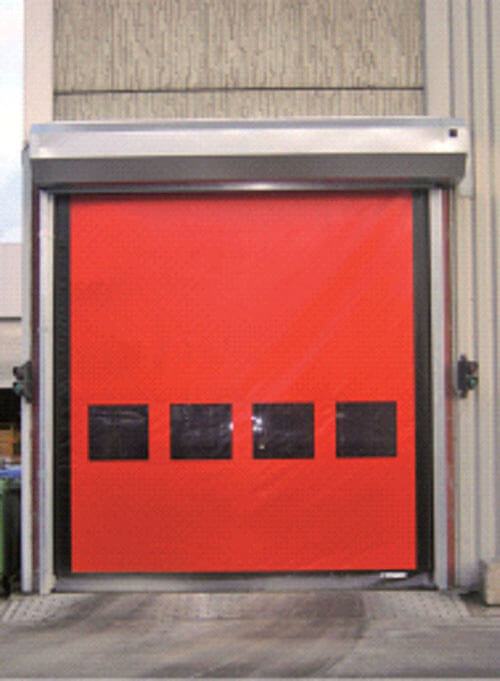

DYNACO Power M2/M3 High Performance Door (Exterior)
Designed for interior and exterior applications to 324 ft2, DYNACO Power M2 doors provide reliable environmental control while increasing productivity and safety. The door is designed to guard against the harshest environmental conditions thus preventing the infiltration of dirt, contaminants, snow, rain, and wind.
Incorporating patented “Push Pull” gear drive technology, the Power M2 operates at higher open and close speed than gravity doors, therefore providing better environment control and energy conservation. Further, the door operates and resists wind and pressure without the need for weighted or rigid components, reducing maintenance and increasing safety.
Technical Data
Maximum Height: 18′ H
Maximum Width: 18′ W
Opening Speed: Up to 96″/sec
Closing Speed: Up to 48″/sec
Technology: Push/Pull
Door Operation
Gear driven “Push-Pull” system positively drives the curtain both directions, eliminating maintenance and damage prone tension systems, wind stiffeners and bottom bars.
High Wind Load Resistance And Operation
Patented “Push Pull” drive locks are attached to the end of the curtain material and run continuously along the full height of the door, providing operation in pressures up to 95 mph. (refer to specifications for additional information)
Safety Engineered
Each door panel comes standard with a unique soft curtain, which prevents many hard edge accidents. No stiffeners or rigid bottom bars to injure workers of damage equipment. A wireless reversing edge and built-in infrared sensors protect against 4 different types of accidents.

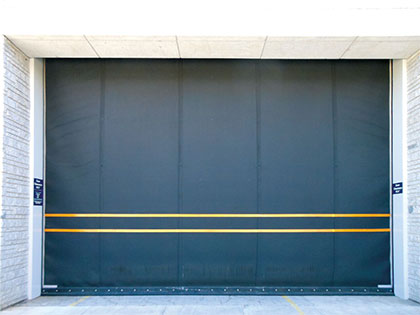

DYNACO S731 Rubber Door (Exterior)
The DYNACO S731 High Performance Door is specifically designed for abusive environments where uninterrupted functionality, reliability and performance is critical to maintaining maximum workflow, environmental control, safety and efficiency.
This DYNACO S731 combines the extreme durability with a refined design, improved aesthetics and the proven reliability of the DYNACO DYNALOGIX II control system. Together, the robust systems and design provide years of reliable high performance.
Technical Data
Maximum Height: 35′ H
Maximum Width: 30′ W
Opening Speed: Up to 60″/sec
Closing Speed: Up to 24″/sec
Technology: Gravity
Superior Seal Means Performance Under Extreme Pressure
Our patent pending continuous wind-lock sealing system withstands static wind pressure of up to 130 mph. The continuous wind lock design provides greater wind resistance and durability while eliminating the need for wind bar systems.
Self-reinserting
In the event of an accidental hit to the door, the curtain assembly will release from the side columns without damage. A simple push of a button will cause the curtain to re-insert itself, thus maintaining consistent operation.
Composite Bottom Bar
Unlike conventional formed steel or extruded aluminum bottom bars, the DYNACO S731 composite bottom bar is resistant to damage or corrosion.

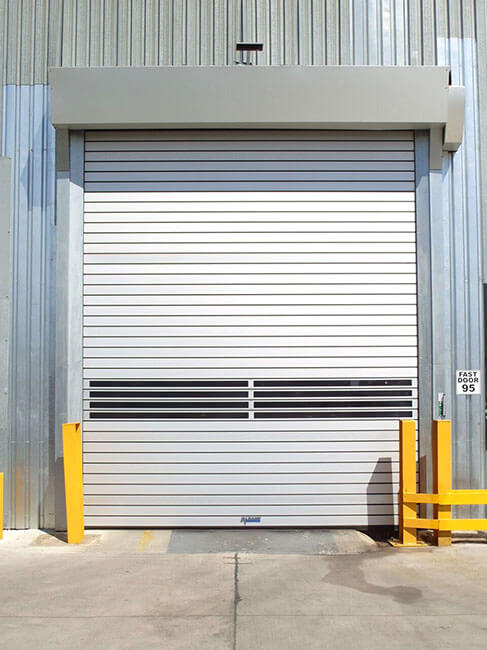

DYNACO S-631 DynaRigid Door (Exterior)
The DYNACO S-631 Rigid is designed for medium sized inside and outside applications requiring extra security. The side posts are designed to resist windloads and protect against intruders.
The unique DiscDrive technology enables quick replacement of the impacted lamellas after collision, minimizing downtime. The DYNACO S-631 Rigid provides environment control and savings on energy costs. Its operating speed improves your traffic flow.
Technical Data
Maximum Height: 16′ H
Maximum Width: 20′ W
Opening Speed: Up to 96″/sec
Closing Speed: Up to 24″/sec
Technology: Disc Drive
Discdrive Technology
Unique door drive system with increased longevity. Door remains operational even when a lamella has been removed after impact.
Easy Lamella Replacement
The flexibility of the aluminium lamellas can absorb light impact.
Flexible Aluminium Lamellas
The flexibility of the aluminium lamellas can absorb light impact.

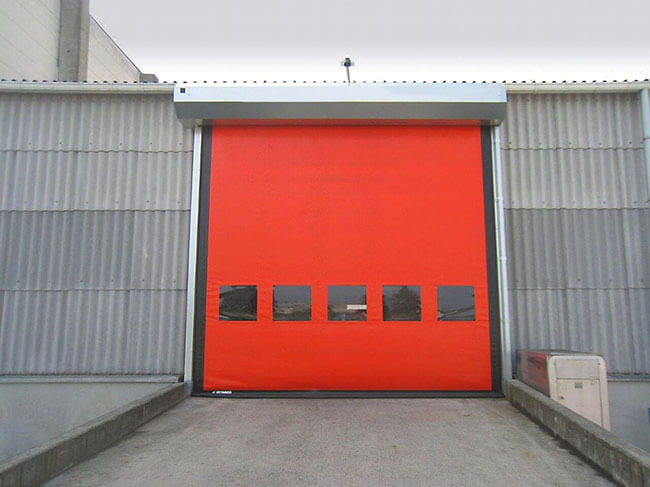

DYNACO All Weather M2 High Performance Door
Specifically designed for exterior applications, the DYNACO All Weather M2 is engineered for high cycles, extreme weather and high wind loads. The All Weather M2 incorporates patented push pull technology, pivoting side guides, soft edge technology, self-reinsertion and industrial quality controls.
Combined, the systems provide maximum performance and safety for high-pressure applications. The All Weather M2 can be mounted interior or exterior to the building and is available with a wide variety of optional equipment. The door is free of rigid components and conventional weatherstrip systems. Thus reducing maintenance cost and improving energy efficiency.
Technical Data
Maximum Height: 18′ H
Maximum Width: 18′ W
Opening Speed: Up to 96″/sec
Closing Speed: Up to 48″/sec
Technology: Push/Pull
Patented Drive System
Push-Pull” technology incorporates a gear drive system, which eliminates rigid components and allows for reliable open and close under pressure.
Patented Side Frame Assembly
Capable of handling wind loads of up to 32 psf, the side guide is spring-loaded and pivots. This allows operation under pressure and reduces wear and tear.
Encapsulated Guide
The inner guide is constructed of durable UHMW, which reduces wear and friction. The guide is re-enforced with a steel channel, providing continuous wind resistance along the full height of the door. The encapsulated design provides superior seal while eliminating conventional weather-strip systems.
Solution-Based Approach.
We offer competitive pricing paired with our solution based approach leading to maximum long-term value.
Well-Trained Technicians.
We constantly train our technicians to ensure high-quality and safe work standards resulting in reliable service.
Fair & Competitive Pricing.
We offer competitive pricing paired with our solution based approach leading to maximum long-term value.
24/7 Emergency Service.
RECOMMENDED PRODUCTS

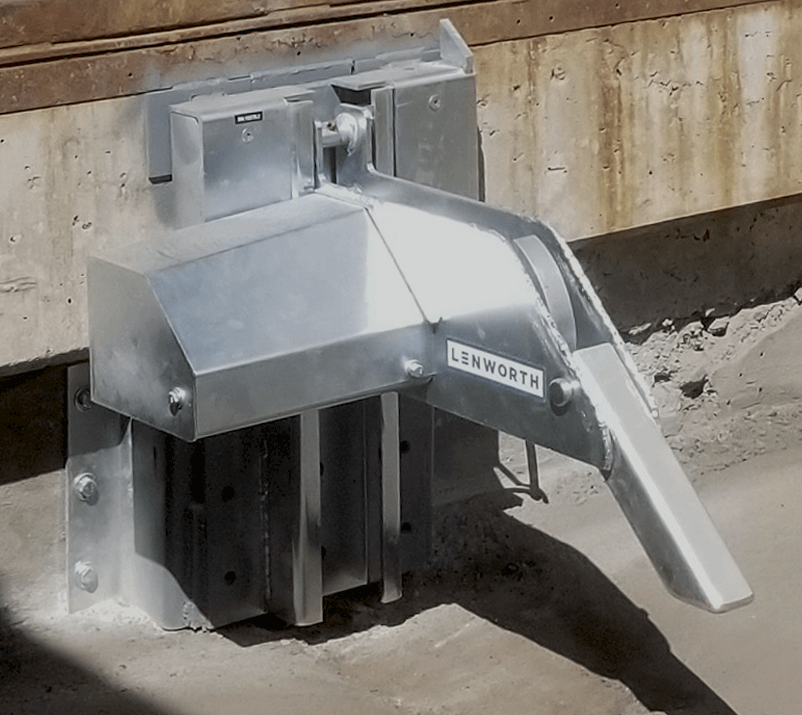

Truck Restraints
